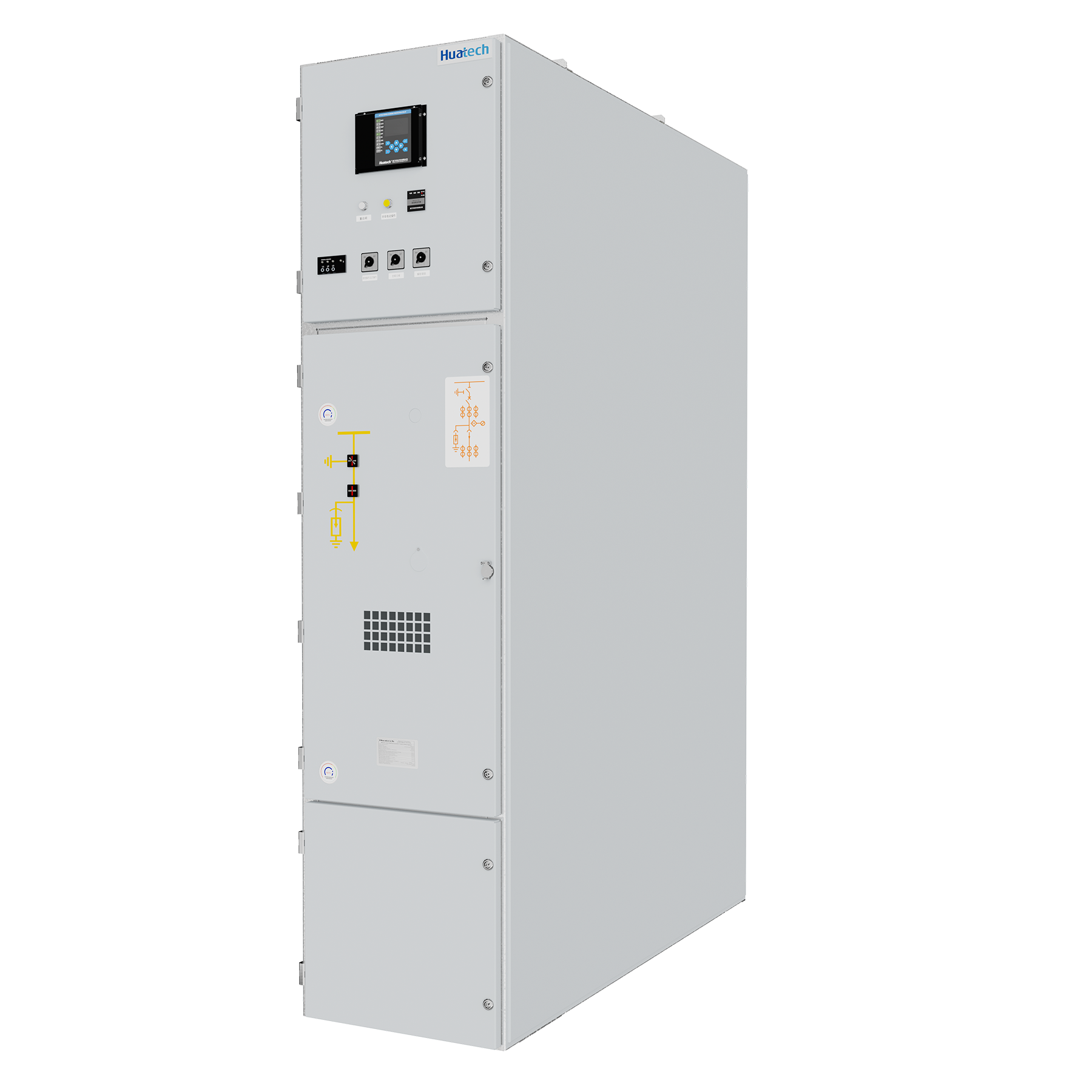

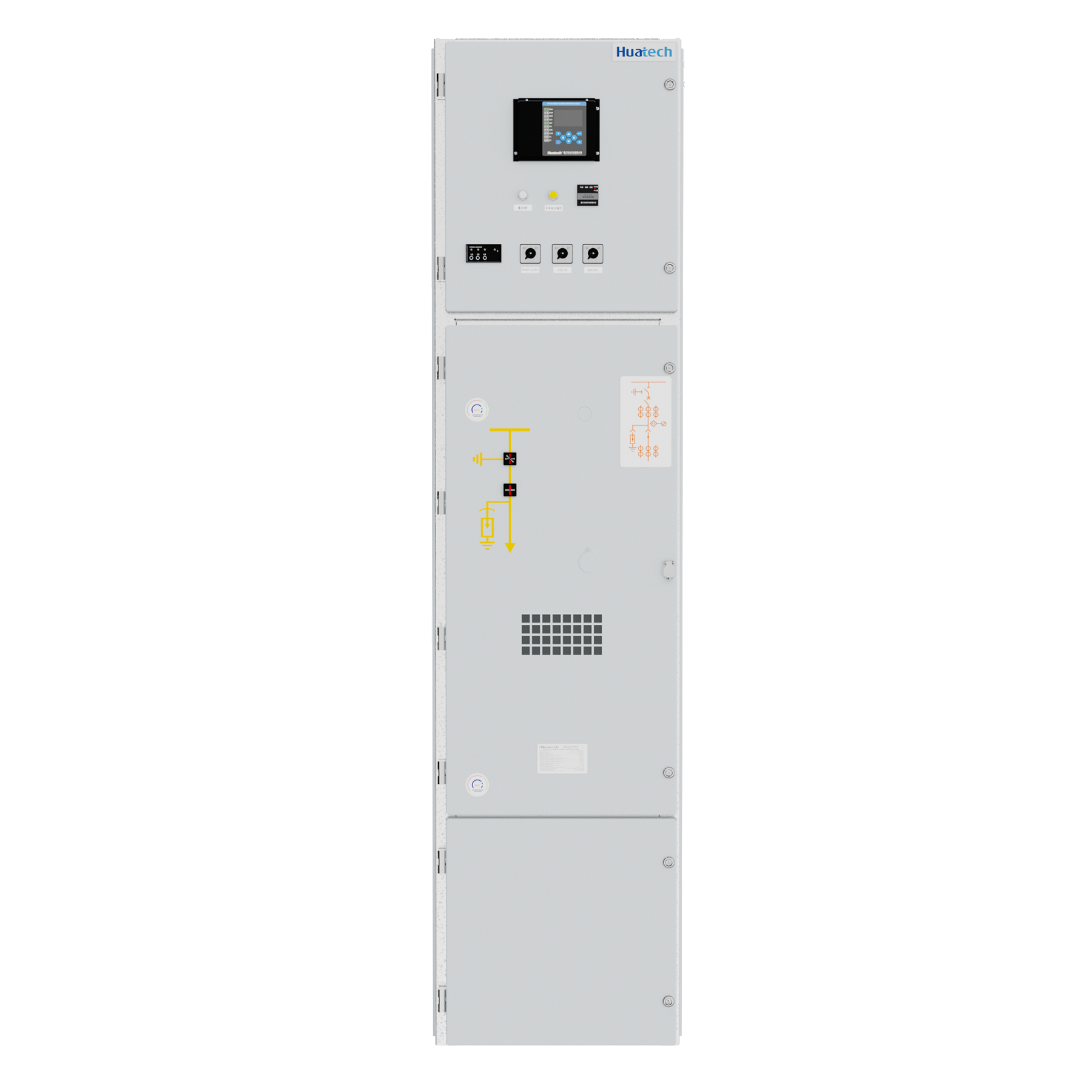

GIM SF6 Gas Insulated Metal-enclosed Switchgear

Description

The medium voltage gas insulated switchgear adopts a dual gas box structure, high-voltage composite insulation, and gas-sealing technology, which makes it highly reliable, maintenance-free, compact, and environmentally friendly. It meets various stringent environmental requirements and provides users with the optimal solutions.

Technical parameter

• Rated voltage: 40.5kV
• Rated current: up to 3150A
• Rated short-circuit breaking current: up to 40kA

Features

• Applied altitude: Up to 4000m
• Not affected by the surrounding environments, suitable for harsh environments.
• With a compact structure, occupying a small footprint, is suitable for land-scarce areas.

Innovation&Intelligence

• Real-time operating temperature, partial discharge status, switch mechanical characteristics and other parameters of each switchgear are displayed on-site.
• Real-time video visualization monitoring of the internal working status of the three-position circuit breaker with isolated earthing switchgear ensures reliable operation.
• Real-time monitoring of the circuit breaker’s mechanical characteristics, the status of the opening/closing coil, and the status of the energy storage motor.
• Real-time monitoring of the equipment’s partial discharge status and change trend, as well as the temperature status of switchgear cable connection points.
